Genuine Fender 099-0822-100 6 inline chrome 'F' 70's Style tuners

Genuine Fender® 6 inline Chrome 'F' 70's Style tuners - Fender part # 099-0822-100

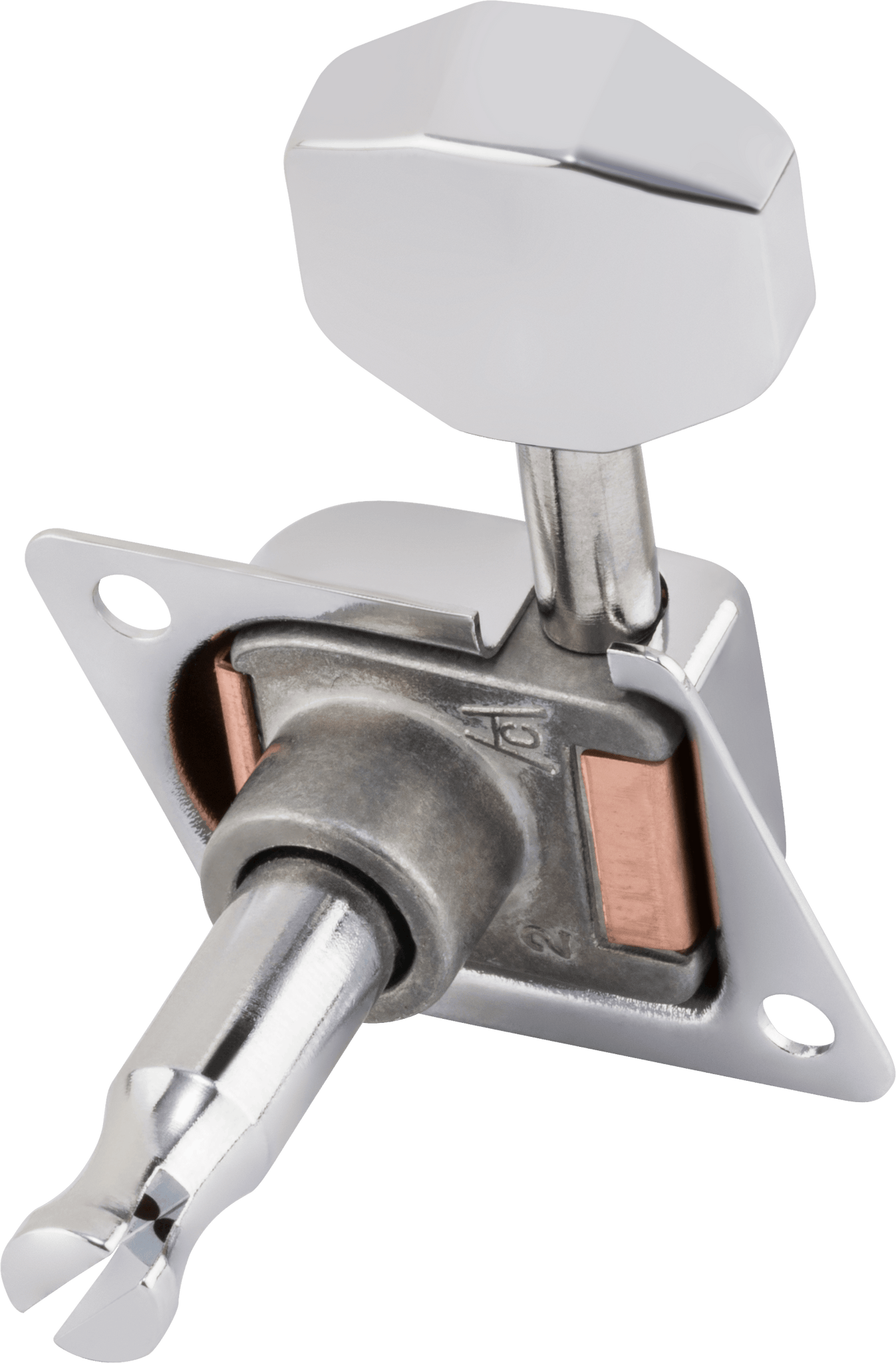

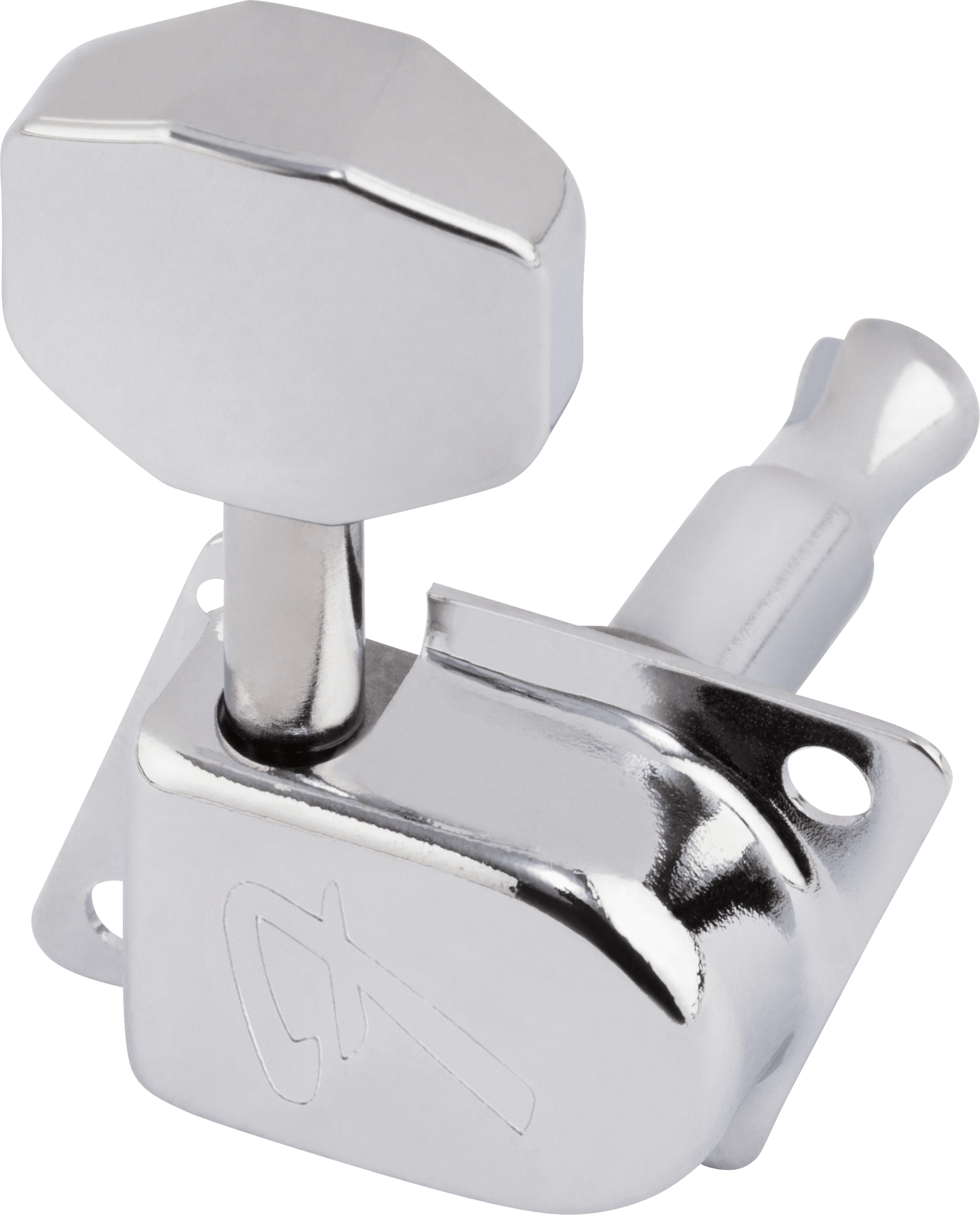

Fender 70's tuning machines are designed exclusively for headstocks with a 10.1mm (.397") tuner bore — the bore size specific to Fender's 70's-era spec necks. The classic "F" logo is stamped directly into each die-cast housing for an authentic vintage look. Each tuner ships with a chrome-plated brass press-fit bushing that seats into this bore with a light interference fit, providing a stable bearing surface for the string post.

Fits: Vintera / Vintera II 70's series, American Vintage II 70's models, Classic Series 70's (Mexico), and original American Vintage 70's (US) models — or any neck with a 10.1mm (.397") tuner bore and 2-screw rear mounting pattern.

Does NOT fit: Vintage-spec necks (8.7mm bore), American Professional / Player / Performer series (10mm bore with 2-pin locking-style mount), or any headstock drilled for modern sealed tuners with front-mount hex nut. These tuners use a dedicated bushing diameter and mounting pattern that is not interchangeable with other Fender tuner systems.

Features

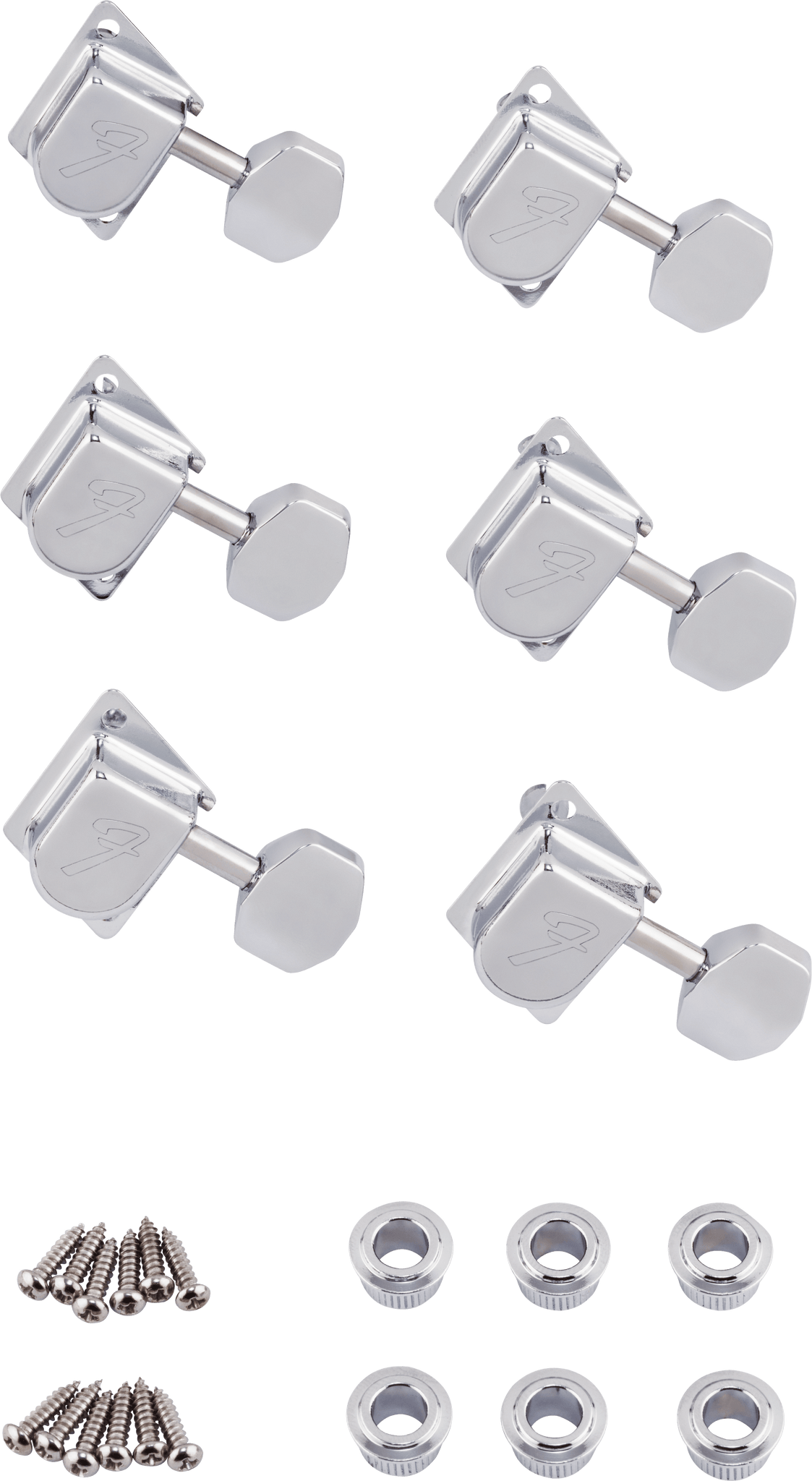

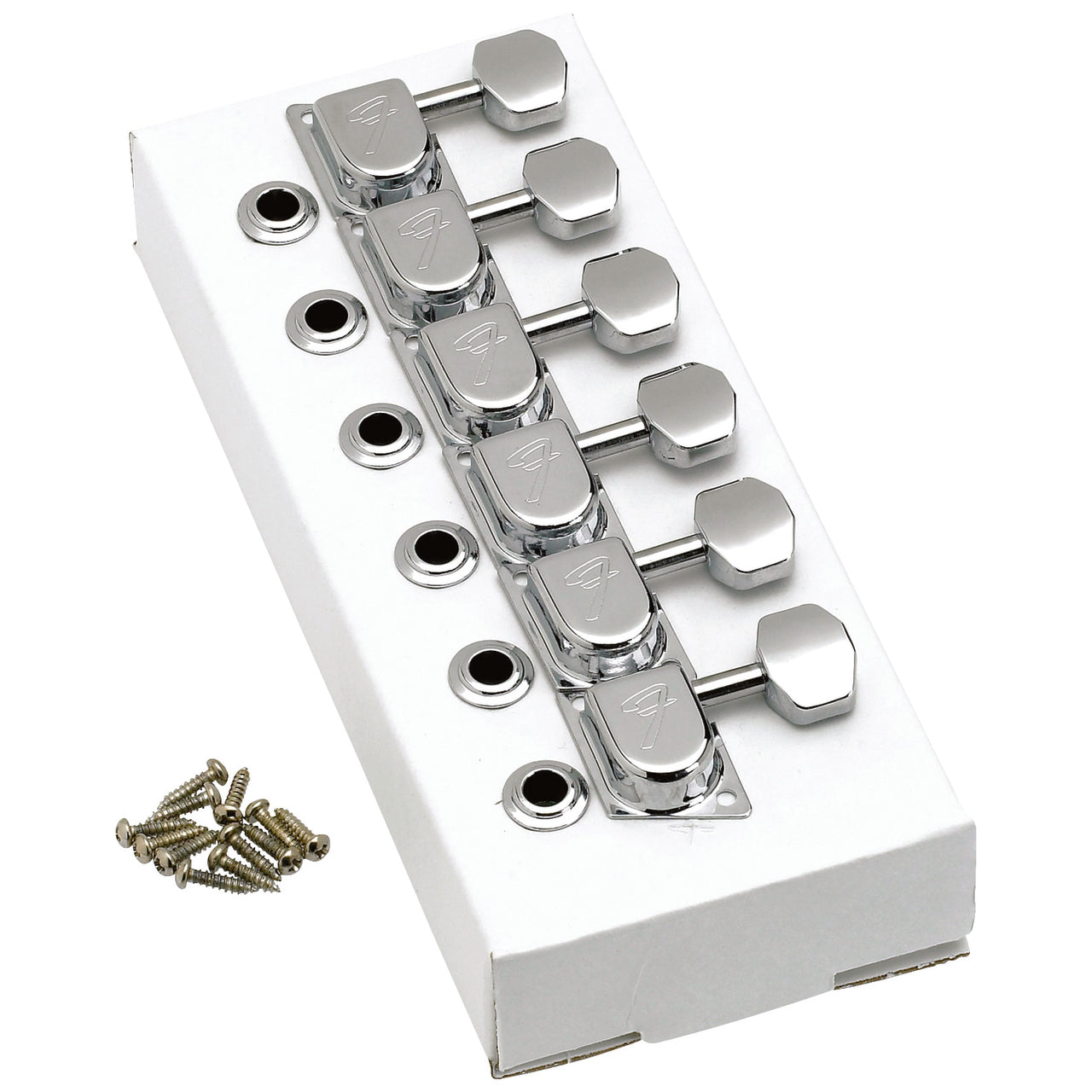

• Package includes six 70's tuning machines with the "F" logo stamped into the die-cast housing, plus chrome press-fit bushings and mounting screws
• Requires 10.1mm (.397") headstock tuner bore — not compatible with vintage-spec (8.7mm) or modern 10mm bores
• 14:1 gear ratio, diagonal 2-screw rear mounting with ⌀.234" (5.94mm) string post
• Brass bushings press-fit into the headstock face with a secure interference fit
• Direct fit for Vintera / Vintera II 70's series and American Vintage II 70's models; replaces original tuners on Classic Series 70's (Mexico) and American Vintage 70's (US) models

Full manufacturer warranty, new and in factory packaging. Includes mounting hardware and bushings.
