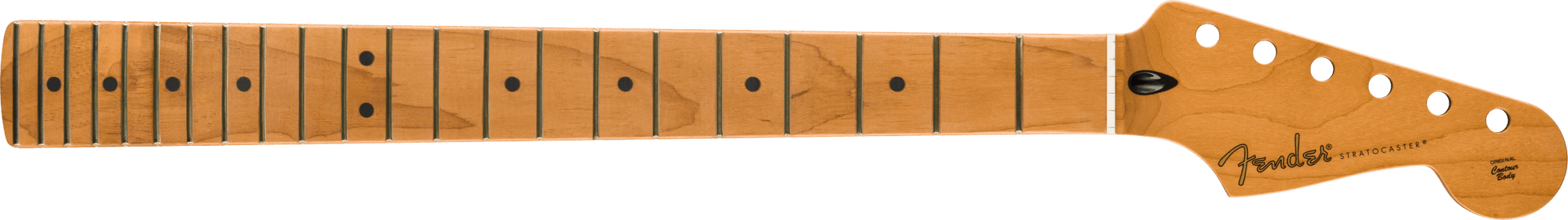

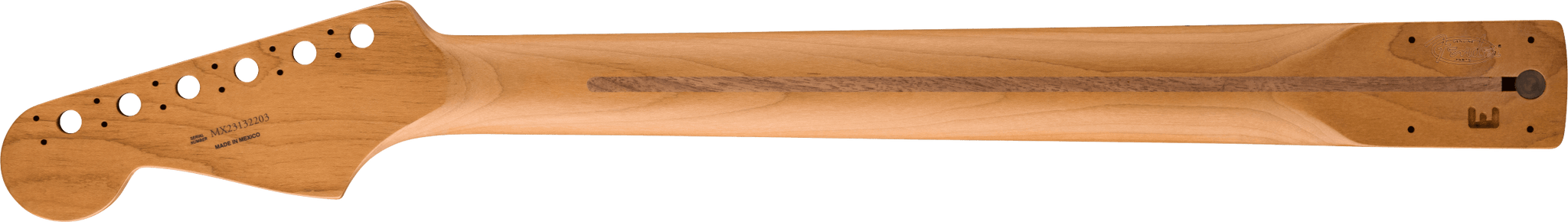

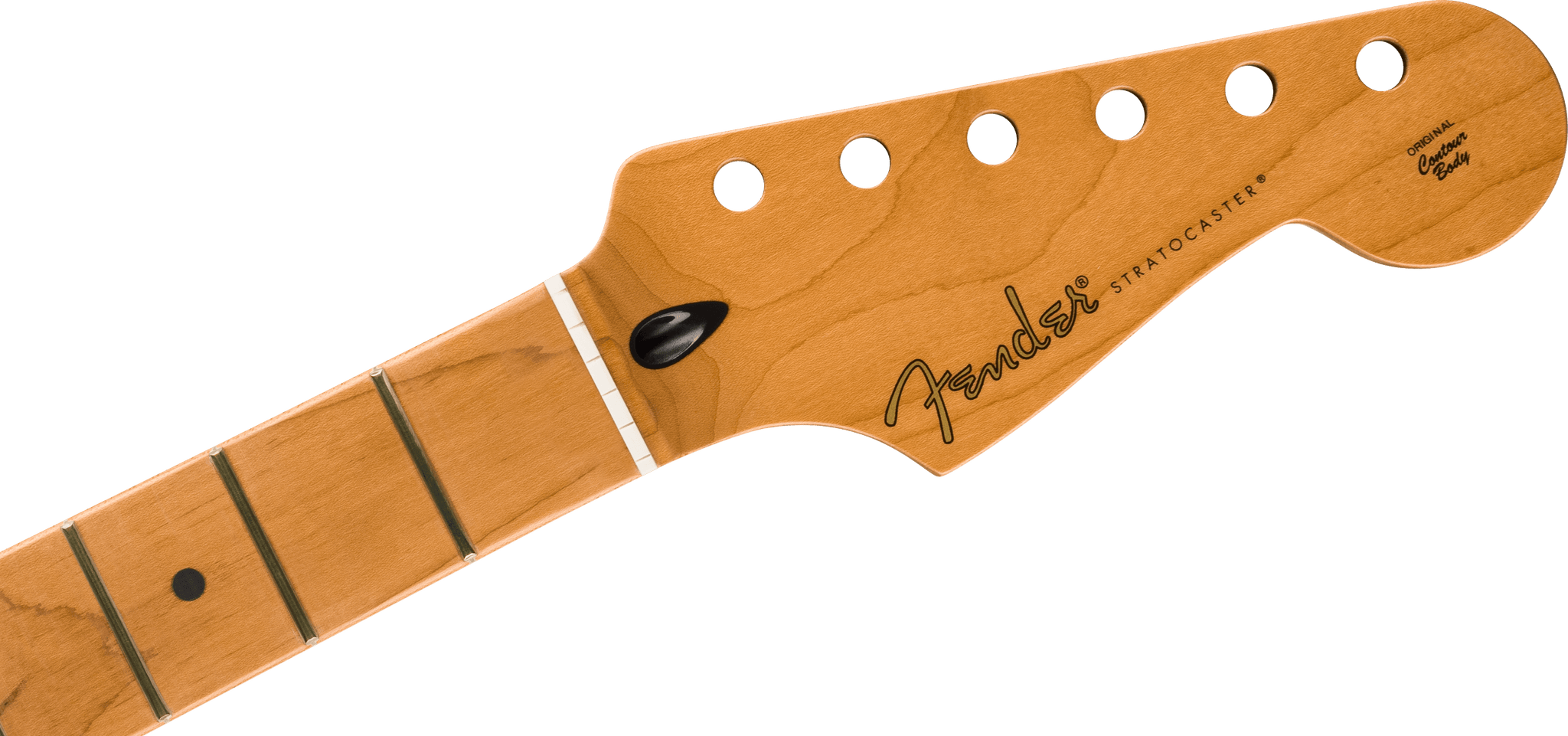

Fender Satin Roasted Maple Stratocaster Neck, Maple, 22 Jumbo Frets, 12", Flat Oval Shape Manufacturers Part No: 099-0492-920
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.
This genuine Fender Stratocaster neck is crafted at Fender's Ensenada, Mexico manufacturing facility. Featuring a comfortable "Flat Oval"-shaped profile and 12"-radius maple or rosewood fingerboard with 22 jumbo frets, this neck was designed for pure speed and comfort. Upgraded features include a satin urethane finish and rolled fingerboard edges for supreme comfort and a broken in feel.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Features
Roasted maple Stratocaster neck
"Flat Oval"-shaped profile; 12"-radius maple or rosewood fingerboard and rolled edges
22 jumbo frets; synthetic bone nut
Satin urethane finish with gloss headstock face
Modern-style truss rod adjustment
Neck Material: Roasted Maple Neck Finish: Satin Urethane with Gloss Urethane Headstock Face Neck Shape: Flat Oval Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm) Neck Mounting: 4-Bolt Fingerboard Radius: 12" (305 mm) Fingerboard Material: Maple Position Inlays: Black Dot Side Dots: Black Number of Frets: 22 Truss Rod: Single Action, Head Adjust Truss Rod Nut: 3/16" Hex Adjustment String Nut: Synthetic Bone Nut Width: 1.6875" (42.86 mm) Nut Material: Synthetic Bone Headstock Thickness: .540" (13.71 mm) Peg Hole Diameter: .397" (10.08 mm) Fret Size: Jumbo Scale Length: 25.5" (648 mm)
IMPORTANT PLEASE READ NOTICE BELOW CAREFULLY:
All necks require nut slot adjustment and a minor level and polish and may need to be fine-tuned for your instrument. This is perfectly normal and not a defect. Because of the variety of set up preferences out there, we leave that to you.
All necks should be carefully inspected prior to installation and/or modification as the neck is rendered non-returnable once altered. All wood is considered unique with individual growth patterns. Some necks may have minor grain variations due to the organic nature of wood. These are not seconds or "blems". Please contact customer service if you have any questions or concerns about your neck when it arrives. We cannot guarantee exact neck pocket fit due to varying manufacturer tolerances, wood shrinkage or expansion over time etc. Some neck pocket modification may be required.
We recommend that if you are not familiar with the proper steps to replace a guitar or bass neck that you should contact a professional for assistance.
