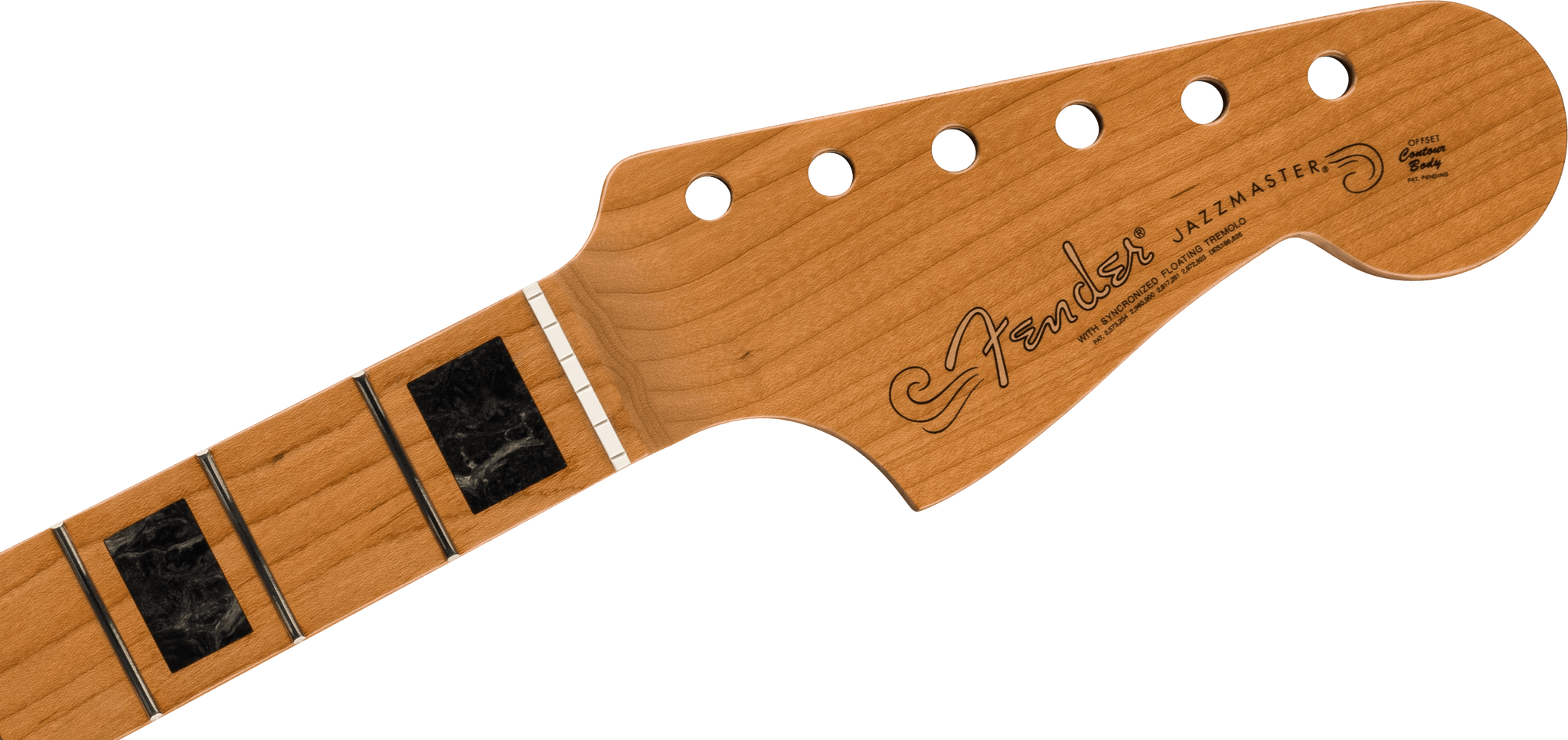

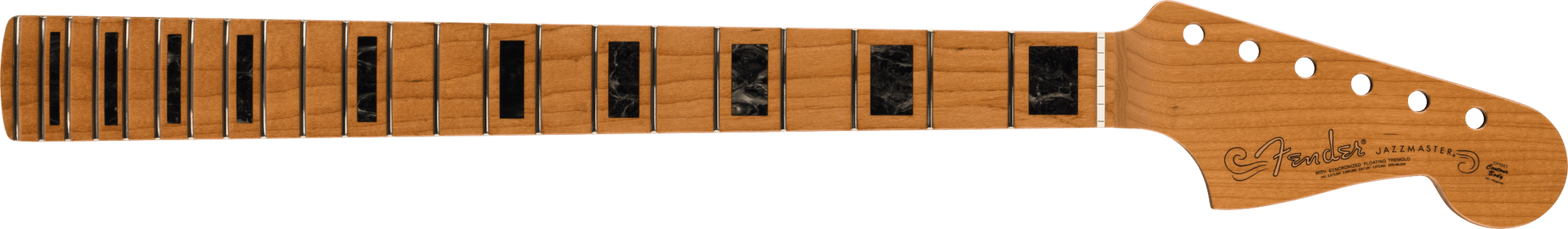

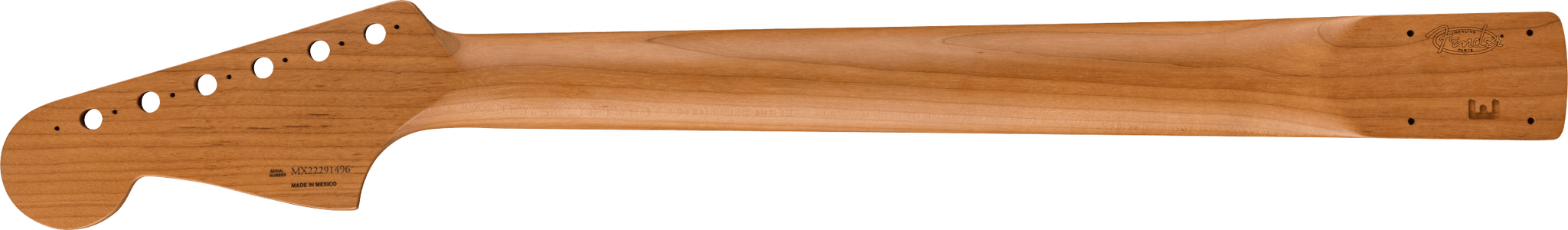

Fender Roasted Jazzmaster Neck, Block Inlays, Maple, 9.5" Radius, Modern C Shape

Shipping calculated at checkout.

Fender Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, Maple, 9.5" Radius, Modern C Shape
Manufacturers Part No: 099-2202-920

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.This genuine Fender Jazzmaster neck is crafted at Fender's Ensenada, Mexico manufacturing facility. Featuring striking pearloid block inlays, a Modern "C" neck profile and 9.5"-radius maple fingerboard with 22 medium jumbo frets for modern playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots.

This replacement neck is for a Fender or Squier® by Fender guitar.

Features

  • Roasted maple neck
  • Modern "C"-shaped profile; 9.5"-radius maple or pau ferro fingerboard
  • 22 medium jumbo frets; pre-slotted synthetic bone nut
  • Gloss urethane finish on maple fingerboard and headstock face; satin finish on back of neck
  • Vintage-style truss rod adjustment

Neck Material: Roasted Maple
Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Shape: Modern "C"
Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Neck Mounting: 4-Bolt
Fingerboard Radius: 9.5" (241 mm)
Fingerboard Material: Maple
Position Inlays: Black Pearloid Block
Side Dots: Black
Number of Frets: 22
Truss Rod: Vintage-Style Heel Adjust
Truss Rod Nut: Vintage-Style Slotted
String Nut: Synthetic Bone
Nut Width: 1.685" (42.8 mm)
Nut Material: Synthetic Bone
Headstock Thickness: .540” (13.71 mm)
Peg Hole Diameter: .358” (9.09 mm)
Fret Size: Medium Jumbo

IMPORTANT PLEASE READ NOTICE BELOW CAREFULLY:

All necks require nut slot adjustment and a minor level and polish and may need to be fine-tuned for your instrument. This is perfectly normal and not a defect. Because of the variety of set up preferences out there, we leave that to you.

All necks should be carefully inspected prior to installation and/or modification as the neck is rendered non-returnable once altered. All wood is considered unique with individual growth patterns. Some necks may have minor grain variations due to the organic nature of wood. These are not seconds or "blems". Please contact customer service if you have any questions or concerns about your neck when it arrives. We cannot guarantee exact neck pocket fit due to varying manufacturer tolerances, wood shrinkage or expansion over time etc. Some neck pocket modification may be required.

We recommend that if you are not familiar with the proper steps to replace a guitar or bass neck that you should contact a professional for assistance.
