Schaller Germany Lockmeister Floyd Rose Tremolo Bridge 7 String 42mm R2 Black

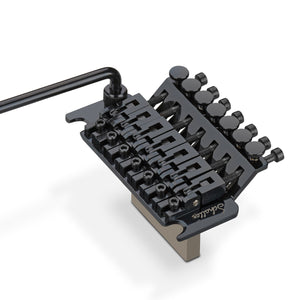

Genuine Schaller Lockmeister® Floyd Rose 7 String locking Tremolo Bridge, 42mm block and R2 Nut, Black Chrome, Made in Germany
Manufacturers Part Number : 13210442
As the sole manufacturer of the world‘s most renowned double locking tremolo Schaller felt it was time to push the envelope, and now introduce the new Schaller LockMeister™ Tremolo.
Along with Schaller‘s famed precision the new LockMeister™ Tremolo offers a second to none C45-steel ground plate, forged and hardened in Germany, resulting in improved sound and sustain as well as superior tremolo performance and intonation.
New technologies enabled Schaller to craft all components in unprecedented tolerances giving the Schaller LockMeister™ Tremolo a sublime level of workmanship and long-term quality. Through more rigorous testing they learned how all burnished surfaces were prone to corrosion. That‘s why all studs, inserts and screws of our new Schaller LockMeister™ Tremolo now feature black-zinc and black-chrome finishes for improved look, touch and durability,
all resulting in world famous Schaller longevity.
Special studs with additional inserts are used to mount the tremolo onto the instrument. The inserts have a fine thread. Schaller also supply studs with threads which enable the studs to be specify screwed into the wood body of the instrument directly, i.e. without inserts.
The dimensions of the Tremolo LockMeister™ are exactly the same as the dimensions of both the Floyd Rose Tremolo and the Schaller Tremolo. You can easily replace your Floyd Rose Tremolo or your Schaller Tremolo with the new LockMeister™ - this also applies to all replacement parts!
- Distance height adjustment screws 85.1mm/3.350"
- Press-in bushing size 10mm/0.394"
- String spacing B-e 64.8mm/2.551"
- Slideway intonation 8.5mm/0.335"
- Weight 480g/16.932 oz
- Sustain Block 42mm
- Locking nut R2
The saddle radius is 12"; if you put the shim under the saddles it is 16"
1 Bridge assembly with tremolo arm
1 R2 locking nut complete with 2 pairs of mounting screws
1 string retainer with mounting screws 2.2 x 16 mm
1 tremolo claw complete with mounting screws 4.2 x 45 mm and 3 tremolo springs
2 mounting studs with 2 threaded bushings
3 Hex/Allen keys (2.0/2.5/3.0 mm)
